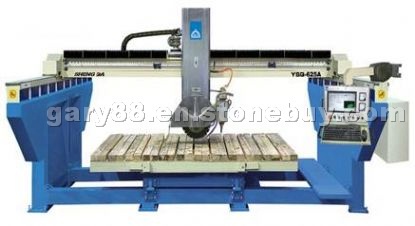

CNC Bridge cutting machine TYPE YSQ-625A

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1433635

• Place of Origin:

  China
• This machine is PLC controlled with cutting dimensions set by terminal input. All operation are executed either manually by the operator or automatically by the program carrying out parallel cuts with max 8 different dimensions repeatable up to 1999 times. The switchboard, with operation buttons, programmer and liquid crystal display on it, is mounted on the right hand side of the machine. The switchboard make operator easily to control the machine from the sawing area when the stone is being positioned. The saw is equipped with a laser illumination system to aid in lining up the cut. The most important is the blade holder of machine can be tilting from 0 to 45 degree for chamfering cutting. So the machine can be satisfy for different special processing request. The cut is controlled through an inverter.
  Max.working dimensions(LxWxH):3200mmX3200mmX170mm.
  Max.diameter of blade:625mm
  Table dimensions(LxW):3200mmX2000mm
  Table tilting degree:0-85n
  Table rotating degree:90n
  Head tilting degree:0-
  Main motor power:15kW
  The new model perform with CNC system for slab size accurate cutting and all designing cutting.
